LED Astray

LEDs are easy — available, cheap, current knowledge. Why not use them for everything “light” — from enlargers to densitometers — the entire world of darkroom photography can be upgraded from the hot light era of last century to the energy efficient 21st century. We’ve come a long way from the 50s tube technology. Semiconductors advance rapidly, continuously. It is the way of industrial application.

So why not make it yourself using some breadboarding, a bit of code, and LEDs from a seemingly infinite range of suppliers.

  • are you building something to build it and prove something — learn something?
  • are you sharpening pencils rather than working
  • can it be bought cheaper
  • do you need it? now?
  • do you know why you would use it
  • does it replace existing
  • does it introduce additional complexity — do you know

Enlarger Lamp Replacement

This seems to be the main source of information. Early efforts posted to the internet go back a decade. Many are for BW multigrade paper exposure and control. This replaces the color-heads that flourished during the 80s individual darkroom rush which was driven by people printing color. What is it that you are replacing, or upgrading?

The source of light? Color? A timer, an analyzer, a closed loop system?

There are, in November 2022, two companies making full function enlarger heads. That means they see a need and have engineered an answer. Maybe you should look at Heiland’s or Intrepid’s equipment before starting your own project. Intrepid 4×5 Enlarger Kit

Densitometer Replacement

More recent, but driven by the scarcity of densitometers most of which were discarded by professional labs as they closed down between 1990 and 2005. The first use of these was in color process analysis. That need reduced throughout the 60s and 70s as Type C printing took over from Dye Transfer. Dye transfer needs declined steadily after 1975.

The densitometer was used as a quality assurance and monitoring device. This was how labs maintained large chemical lines and automated printers. The explosion of small photography studios fed this. That has all been replaced by digital, which has dominated for more than a generation of photographers. — Digital uses more AIM points and spectrophotometers than film did/does.

How did those old densitometers do what they did? A light, filters, sensor(s) — sensor like a photocell, a lightmeter — early ones as well as very sensitive on-easel analyzers used photomultipliers.

the light wasn’t complex, it was just an ordinary off-the-shelf bulb. The filters where chosen from the status sets — one for transmission — the most needed in dye transfer. Or for reflection, the one for measuring standard quality strips for printing .. Much of the magic was in mechanical engineering, with much of that seemingly to obscure the otherwise simple mechanisms in the box.

There was a whole lot of discreet components on the boards. Over time integrated circuits replaced that, so much so that power supplies were the last holdout of the complex electronics. All of that could easily be upgraded by current electronics-software systems.

Do you need a densitometer — probably not. Do you know the difference between two and three point control?

The main need of a densitometer in an assembly process is control of separations, not in the analysis of the original film. In a lab operation where anything could come over the transom, examining the ‘chrome was important — it saved us time. Also, when we had many films to match print it saved us much expense, while assuring that the set of prints seemed as though they had been shot by the same camera/film and printed at the same time. This is what profiling achieves in the digital domain.

What I mean, what I did: my first three years making dye transfers I didn’t have a densitometer. These were my prints. I relied on other controls to get my results. With my second commercial printing, I bought my first densitometer. In effect, my client paid. That was a major realization — work on the clients money. If they can’t afford it, you can’t afford it either. Don’t become one of the many “equipment poor” photographers.

Coolscan Modification for 4 x 5

Using a coolscan to scan 4 x 5 film has tempted me for a couple years.

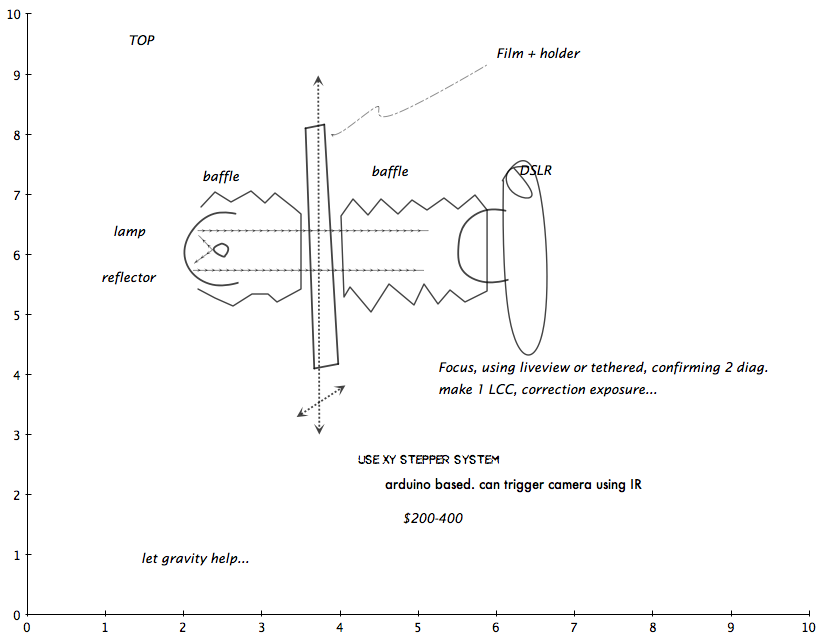

Recently, I built a scanner system using a DSLR as the digitizing device. As part of that, I studied the Nikon Coolscan system. Today, I made my first modification to a Coolscan film holder. In concept this should work. But, do I put this modified, kludged holder into my Coolscan? What if it grinds all to a halt? Oh well, courage and such ,,,,

Igor, It Works

Another hour, and it works. Meaning, it fits. It scans. Two tiffs later, and time to align them. The actual scan opening, after mods is 2.35″. Since a 4×5, in the short dimension is about 3.93″ there is an overlap, that should make it easy for alignment software to correct and merge the two scans.

Igor, You Idiot.

We need a new brain! The damned thing doesn’t work! The film will not fit inside the track within the Coolscan. This means DON’T TRY THIS AT HOME. The film will hit guides within the Coolscan. Careful measurement would have saved me the “head slap” and $54 of this experiment. But careful measurement might have meant I wouldn’t have had as much excitement. It may be possible to adjust the holder, however, I think the scan coverage wouldn’t be enough to cover the film and keep focus across the plane.

If only Nikon had made the scanner about 1/4 inch wider, but they didn’t.
