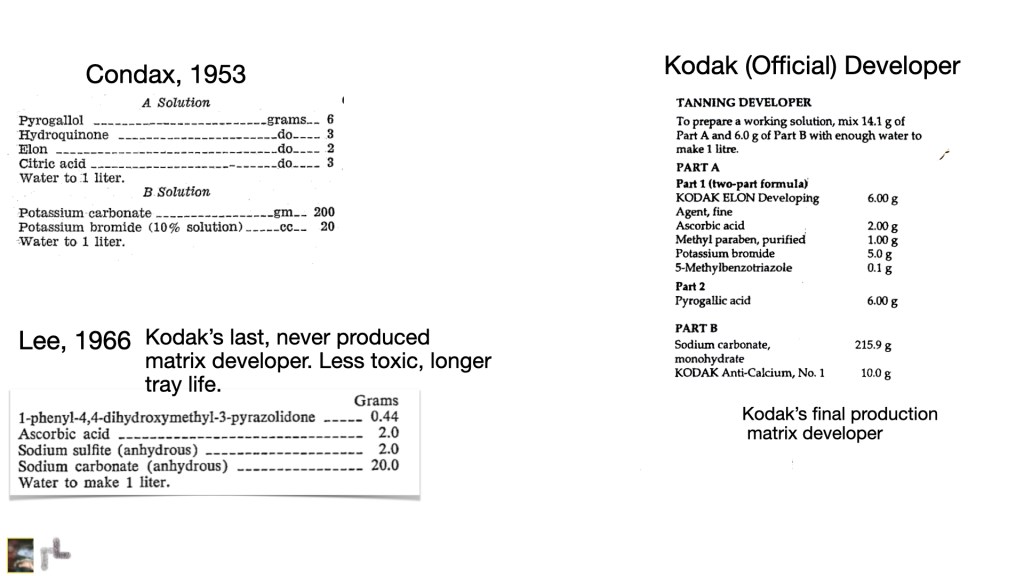

tanning developer. dye+mordant. matrix and blank. These are the key elements of imbibition print making.
Dye transfer works because …
differing thickness of gelatin gives different amounts of dye to transfer from the “matrix” to the “blank.” The gelatin of the emulsion is the same thickness before it is exposed and processed, developed. After development the emulsion is “washed off” providing a relief image. Soft gelatin washes off, melts, at 90F. To maintain an image means hardening the image forming gelatin. This is done by using a “tanning developer.” Tanning being the action of hardening gelatin.
Tanning developers must not stain, only harden the gelatin around the silver site. Practical tanning developer solutions are highly unstable since preservatives, such as sodium sulfite, cannot be used in quantities found in more common developers. The presence of these chemicals react with the oxidized developer reducing the extent, or effectiveness of the tanning action.
The first versions of imbibition printing, wash-off relief, used the principle of a tanning bleach such as a dichromate. Dichromate systems were not as sharp as tanning developer systems, so dichromate methods were discarded before 1950.
1879 JW Swan patented the use of pyrogallol-ammonia developer without sodium sulfite to produce relief images on photographic plates useful for printing processes.
Leon Warnerke (BP 1436 1881] to dissolve or etch away in warm water the parts of the image that were not developable in sulfiteless PA developer.
1906 A and L Lumiera and Seyewetz showed that gelatine could be insolubilized in the absence of of silver halide if a pyrogallo-sodium carbonate solution was allowed to oxidize in air
Technicolor [bp 785873 (1957) Improvements in or relating to Dyed Photographic Relived Records, solved the “breakthrough” in the highlights — gelatin too thin to absorb sufficient dye for transfer.
- Mees and James, The Theory of The Photographic Process, 1966, p.304
- US 2,415,666
- US 3,293,035
- US 3,746,544
Further notes:
- R-10a needs clearing, otherwise dyes look yellow/brown when using slip-sheet assembly method. [2.20.23]
- Jos-Pe process invented by G. Koppmann in 1924(?6) was the first commercial process based upon tanning developer.
list of Koppman patents
Koppmann patented using pyrocatechin without sulfite with subsequent wash-off in hot water. Variation was to develop in a non-tanning developer then the unreduced silver halide could be exposed and developed with a tanning developer. Upon wash-off the primary image and gelatin would be dissolved..
Further, use of a ‘dye’ to prevent over-exposure was noticed along with using matrix emulsions “poor in silver.”
Ref to Mixing:
